Name: Titanium Diboride TiB₂ Powder 12045-63-5
Availability: InStock

Titanium Diboride TiB₂ Powder 12045-63-5

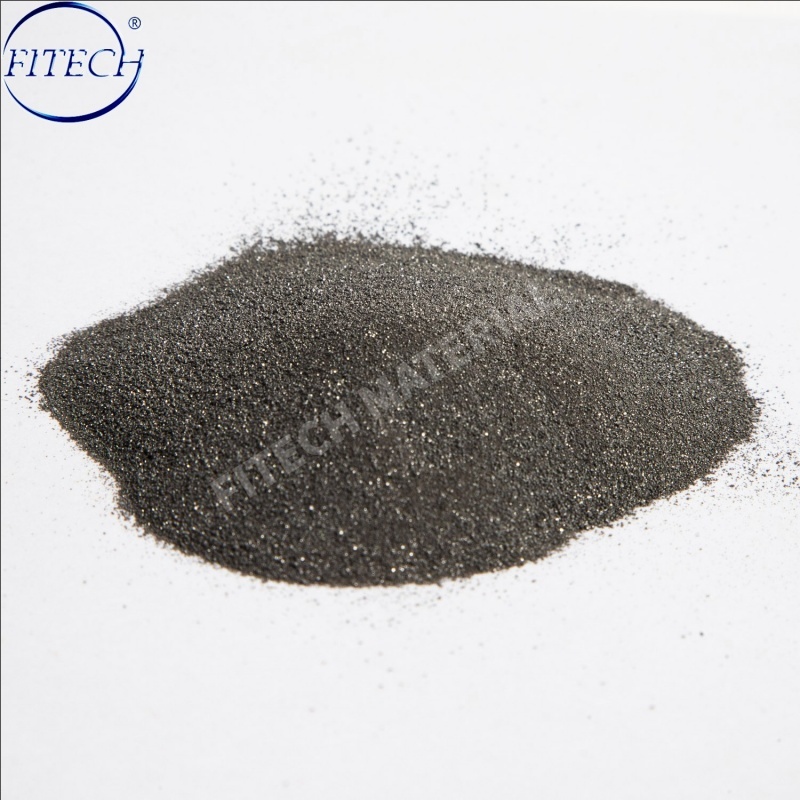

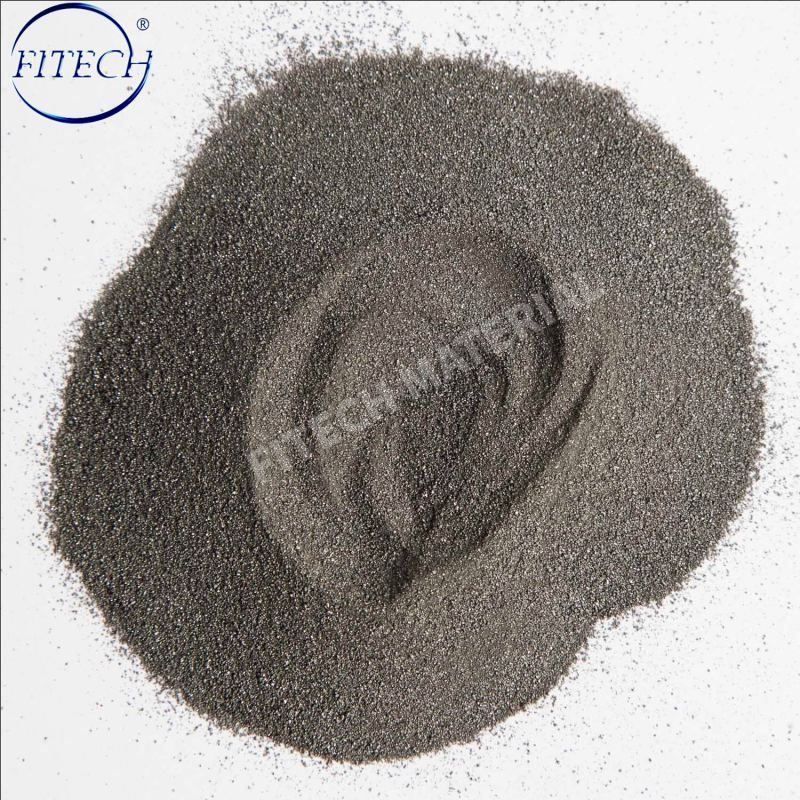

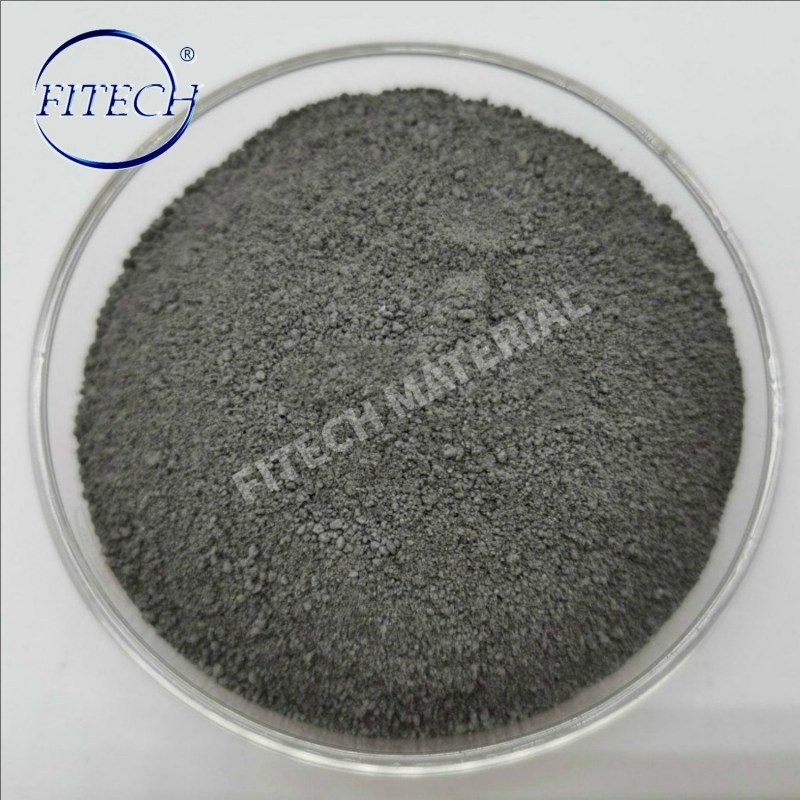

Titanium diboride powder (TiB₂, CAS 12045-63-5) is a gray-black powder with density 4.52 g/cm³ and melting point 2980℃. It features high hardness, wear resistance, good electrical & thermal conductivity, purity ≥99%, customizable particle size. Used in cutting tools, armor ceramics, aluminum cells and composites.

Cas No. :
12045-63-5
Molecular Formula :
TiB₂
Density :
4.52 g/cm³
Melting point :
2980°C
HS code :
2850009090
Place of Origin :
China
Grade :
Industrial grade
Apperance :
Gray Black Powder

Product Details

Basic information

Titanium diboride has a hexagonal crystal structure with ultra-high hardness. It oxidizes up to 1000°C, stable in HCl/HF. Density 4.52 g/cm³, thermal expansion 8.1×10⁻⁶ m/m·K, thermal conductivity 25 J/m·s·K, resistivity 14.4 μΩ·cm. Used in ceramic composites, molten metal crucibles and electrolytic cell electrodes.

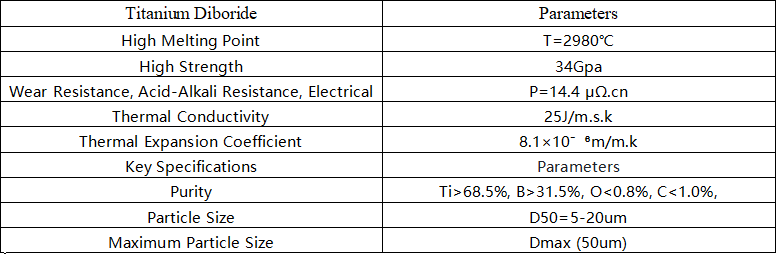

Specification

Application

1: As one of the main raw materials for vacuum coating conductive evaporation boats.

2: It can manufacture precision cutting tools, drawing dies, extrusion dies, sandblasting nozzles, sealing components, etc.

3: It can serve as an important component of multi-component composite materials. It can be combined with materials such as TiC, TiN, and SiC to form composite materials, and be used to manufacture various high-temperature components and functional parts, such as high-temperature crucibles and engine parts. It is also one of the best materials for making armor protection materials.

4: Due to the excellent wetting property of TiB2 towards molten aluminum, using TiB2 as the cathode coating material for aluminum electrolytic cells can reduce the power consumption of the electrolytic cells and extend their lifespan.
